Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters

Model Number : Voltmeter, Voltmeter

Functional Application : Voltmeter

Accuracy Class : 1%

Display Type : Digital Only

DIY Supplies : ELECTRICAL

MOQ : 200

Operating Temperature : -10-+65C

Mounting Type : standard

Place of Origin : Guangdong, China

Brand Name : creatall

Price : $0.47-0.72

Power Supply : DC

Dimensions : 35 x 23 x 20 mm

Contact Now

Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Recommend Products
Products Description
0.36inch Mini Digital Voltmeter DC 3V to 32V Digital Voltmeter 0-100V Voltage Panel Meter for Red Electromobile Motorcycle Car

1. The wiring of this voltmeter is simple. The two wires are used regularly. The red is connected to the positive, the black is
connected to the negative, and the reverse connection is protected.
2. Normally, no external working power supply is needed, and the measuring voltage can be directly operated. The measuring voltage range is 3-32V /0-100V.
3, wide voltage operation, the red minimum measurement voltage is 23, the maximum safe pressure can reach 40V, more than 40V maybe damaged.
4. When measuring voltage below 10V, two digits are displayed after the decimal point; when measuring voltage above 10V, one digit is displayed after the decimal point.


Power supply range No separate power supply. Measured voltage <40V higher than 40V may be damaged.
Test accuracy Accuracy calibrated with adjustable voltage resistor

Measuring range：

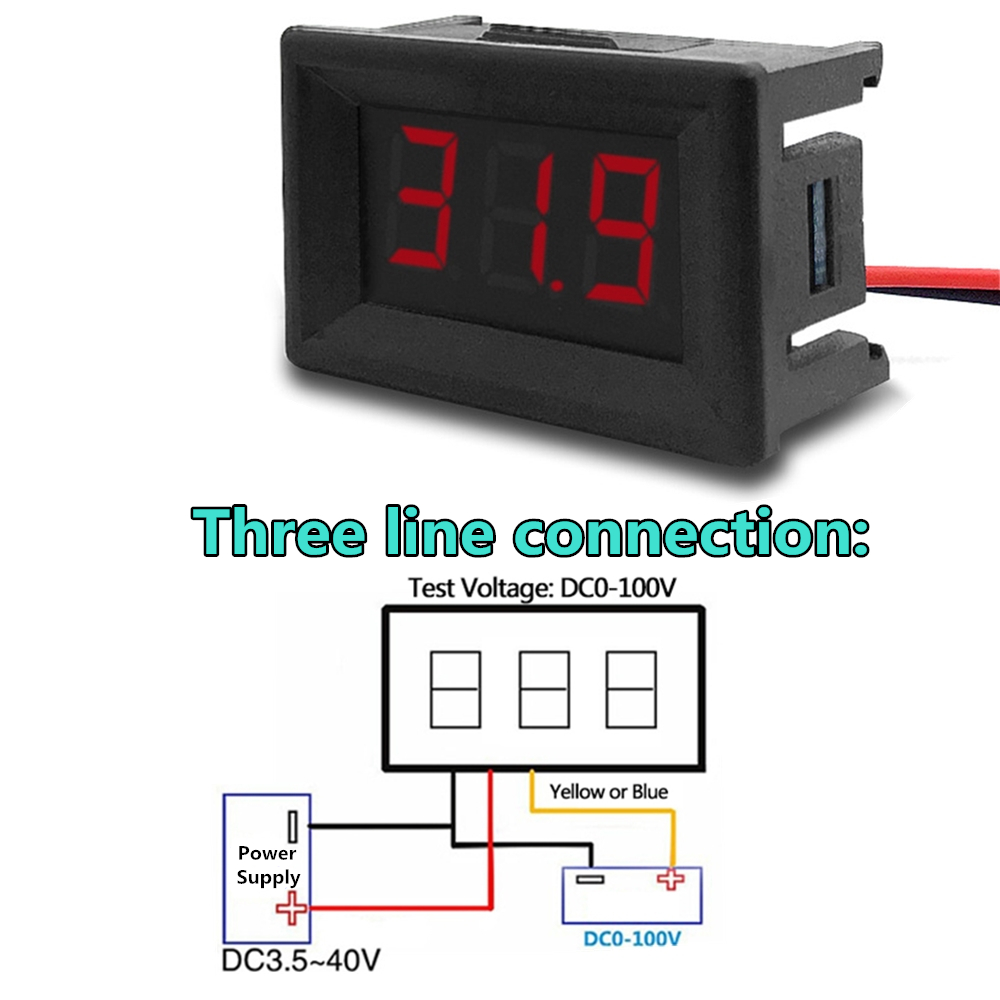

Two-wire DC3~32V / Three-wire DC0-100V
Input impedance
>50KΩ
Working current
Working current
Refresh rate is about
100mS
Display Specifications
Three 0.36 LED Digital Tubes (Red)
Lead length default
20cm
Dimensions
35 x 23 x 20 mm
Mounting slot size
32 x 21 mm
Operating temperature
-10 to +65 °C
Working humidity
10 ~ 80%
Working pressure
80 ~ 106kPa
Measure accuracy
(± 1-3 digit)
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Company Profile
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Why Choose Us
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Certificates & Production Processes
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Mini 0.36inch LED Display Digital Voltmeter Panel Meter 0-100V DC Range Red Color Electromobile Car Temperature Voltage Meters
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us. Different item”s moq will be different. Q: Are you factory or trading company? A: We're manufacturing company, founded in 2010, located in SHENZHEN, you can visit our company, welcome. Q: Is this a finished product or semi-finished product? A: This is a semi-finished product, we customize Audio & Video Decoding Board/Module on your demand. Q: Do you do OEM?Can we change the color?Use our own logo? A: Yes, we can do OEM for you with your required color and logo. Q: How long does it take to my place /our company? A: Depands on when you could confirm the order.will you take them by air /by sea or through express like DHL/Fedex /ups please? Q: What is your price/how much? A: The final price will depend on your order quantities, the more qantities your order, the better price you will get. Q: Can you send goods to my forwarder in China? A: yes, we could do so.if the cost is not much, we will cover it ourselves, but if out of our undertake ability, we willl discuss with you according to the bill.
